Telford Unvented Heat Pump Cylinder – UFH
(inc VAT)

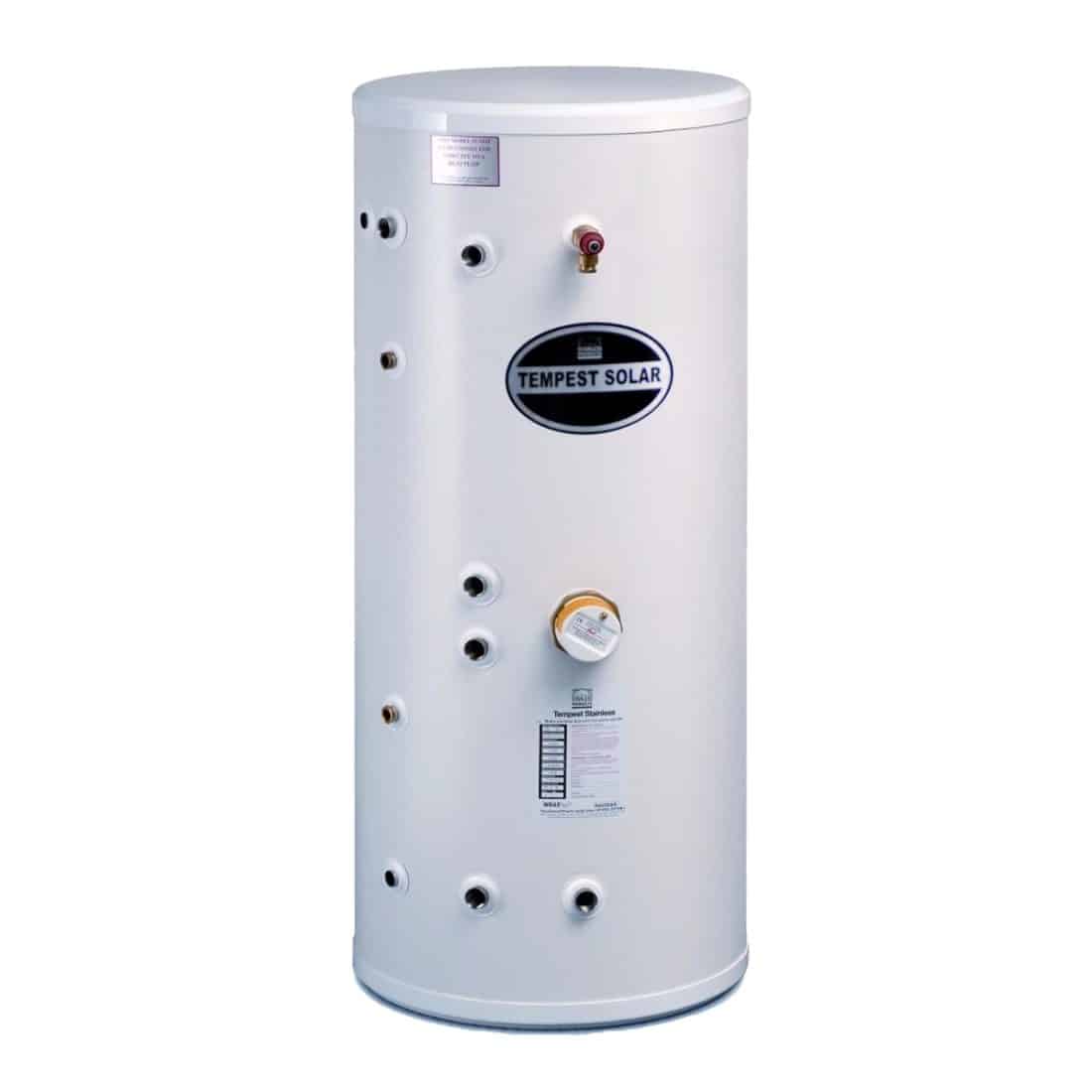

The Telford Tempest unvented heat pump cylinder is designed for direct connection to our range of Samsung EHS heat pumps. We offer this standard heat pump cylinder in 200, 250, 300 & 400 litre sizes, and a pre-plumbed version & MIME control unit in 200 & 300 litre sizes.
With developers using more renewable energy sources than ever before, the Tempest heat pump cylinder is now available to be used with Air and Ground source heat pumps. This version is available in single coil where a heat pump is the only heat source and twin coil where solar or a boiler is also available.
As with all Tempest cylinders, we are so confident in the construction that we have given the Tempest heat pump cylinder a lifetime Warranty.
Our standard Heat Pump coil has a surface area of 3.3m2, as a result the smallest tank we can offer is a 200litre.
Key Features:
- Easy to install
- Pressure test to 15 bar
- 3 bar working pressure
- Flow rate up to 55ltrs/min
- Indirect and Twin Coil versions
- Stylish appearance
- Lifetime guarantee
Samsung Premium Air Source Heat Pump
Installation Manual – Single Unit
Installation Manual – Multi Units
Samsung EHS Mono Datasheet
Pre-Sales Brochure
Typical heat pump installation setup
200L Telford Tempest Heat Pump Cylinder
510mm diameter 1500mm high
3.3m^2 coil
Standing loss 1.75kWh per 24 hrs or 73Watts
3kW Immersion heater
Expansion vessel 24ltr
Flexi hose not included as standard on any vessel
7 Bar Temp and pressure relief
3 Bar inlet Control Group
22mm 2 port Motorised valve (not required)
22mm connections for cold in and hot out
250L Telford Tempest Heat Pump Cylinder
510mm diameter 1800mm high
3.3m^2 coil
Standing loss 2.1kWh per 24 hrs or 87Watts
3kW Immersion heater
Expansion vessel 24ltr
Flexi hose not included as standard on any vessel
7 Bar Temp and pressure relief
3 Bar inlet Control Group
22mm 2 port Motorised valve (not required)
22mm connections for cold in and hot out
300L Telford Tempest Heat Pump Cylinder
555mm diameter 1650mm high
3.3m^2 coil
Standing loss 2.3kWhrs/24rs or 96 Watts 3kW Immersion heater
7 Bar Temp and pressure relief
3 Bar inlet Control Group
22mm 2 port Motorised valve (not required)
24ltr Expansion Vessel no flexi hose supplied
22mm connections for cold in and hot out
400L Telford Tempest Heat Pump Cylinder
660mm diameter 1650mm high
3.3m^2 coil
Standing loss 2.94kWhrs/hrs or 123 Watts 3kW Immersion heater
35l Expansion vessel no flexi hose is supplied
7 Bar Temp and pressure relief
3 Bar inlet Control Group
22mm 2 port Motorised valve (not required)
1″ connections for cold in and hot out
