Home / Water Underfloor Heating / Manifolds / Stainless Steel Manifolds / Auto Balancing / Auto-Balancing Stainless Steel Manifold

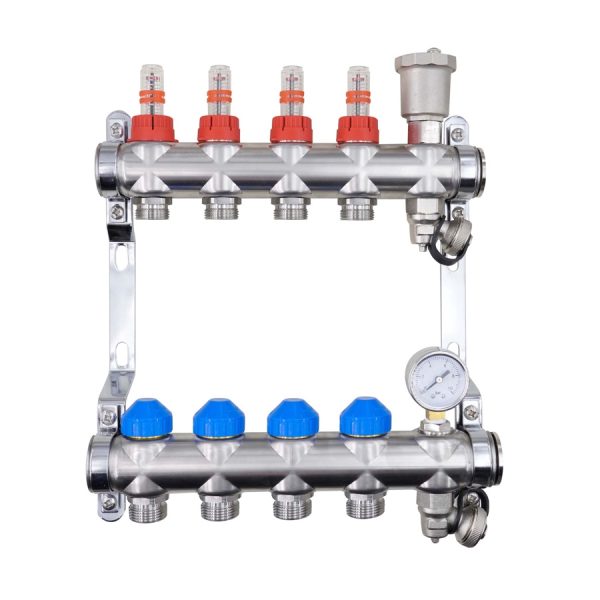

4 port auto balancing underfloor heating manifold the underfloor heating company

Description
Auto-Balancing Stainless Steel Manifold for HVAC systems, featuring dynamic flow balancing and independent setting for each individual circuit.
- Delivery manifold comes with flow meters that include a fluid shut-off function.
- Return manifold has dynamic flow balancing valves and a manual handwheel (M30 x 1.5 mm connection), prearranged for thermo-electric command via actuators that can be installed after fitting the relative ring nut (actuators sold separately).
- Drain valves, manual air vent valves, and pressure gauge.
- Metal mounting brackets
- Key for presetting
Manuals
Stainless Steel Auto Balancing Manifold Datasheet
Specifications
Performance
- Fluids: water, glycol solutions (max. 30%)
- Center distance between the outlets: 50 mm
- Temperature range: 5 ÷ 70 °C
- Max. working pressure: 6 bar (10 bar for system testing)
- Max. differential pressure with thermo-electric actuators installed: 1.5 bar
- Flow rate setting range for each individual circuit: 10 ÷ 250 l/h
- Working differential pressure range: 30/40 ÷ 150 kPa
- Flow meters: 0 ÷ 5 l/min
Materials
- Delivery and return manifolds: 304 stainless steel
- Drain valves: Ni-plated brass
- Gaskets: EPDM
- Manifold brackets: Ni/Chrome-plated steel
- Manual handwheel: plastic material
- Bonnet with dynamic balancing on return manifold:
  - Command stem: stainless steel
  - Bonnet body: UNI EN 12164 CW617N brass
  - Sleeve and indicator ring: plastic material
  - O-Ring and stopper: EPDM

Auto-Balancing Stainless Steel Manifold

Price range: £97.99 through £391.99 inc.VAT

In Stock

SKU: TR-ABM00

Size

Pipe Connectors *

Buy Now - Pay with Installments...

Klarna, Paypal

Description
Auto-Balancing Stainless Steel Manifold for HVAC systems, featuring dynamic flow balancing and independent setting for each individual circuit.
- Delivery manifold comes with flow meters that include a fluid shut-off function.
- Return manifold has dynamic flow balancing valves and a manual handwheel (M30 x 1.5 mm connection), prearranged for thermo-electric command via actuators that can be installed after fitting the relative ring nut (actuators sold separately).
- Drain valves, manual air vent valves, and pressure gauge.
- Metal mounting brackets
- Key for presetting
Manuals
Stainless Steel Auto Balancing Manifold Datasheet
Specifications
Performance
- Fluids: water, glycol solutions (max. 30%)
- Center distance between the outlets: 50 mm
- Temperature range: 5 ÷ 70 °C
- Max. working pressure: 6 bar (10 bar for system testing)
- Max. differential pressure with thermo-electric actuators installed: 1.5 bar
- Flow rate setting range for each individual circuit: 10 ÷ 250 l/h
- Working differential pressure range: 30/40 ÷ 150 kPa
- Flow meters: 0 ÷ 5 l/min
Materials
- Delivery and return manifolds: 304 stainless steel
- Drain valves: Ni-plated brass
- Gaskets: EPDM
- Manifold brackets: Ni/Chrome-plated steel
- Manual handwheel: plastic material
- Bonnet with dynamic balancing on return manifold:
  - Command stem: stainless steel
  - Bonnet body: UNI EN 12164 CW617N brass
  - Sleeve and indicator ring: plastic material
  - O-Ring and stopper: EPDM
