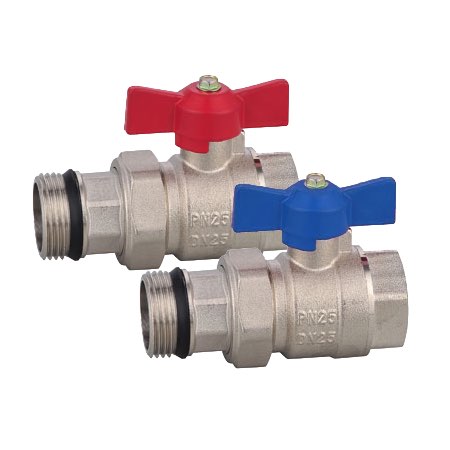

Premium 5 -Port Brass Underfloor Heating Manifold with ball valve The Underfloor Heating Company

Description
Our premium brass underfloor heating manifolds are designed for 2 to 12 heating circuits, delivering precise control, reliable balancing, and long-term performance in water underfloor heating systems. Manufactured in accordance with BS EN 1264-4, they ensure safe, efficient heat distribution across residential and light commercial installations.

Each circuit features integrated flow meters for accurate balancing between 1–5 L/min, with manual isolation valves on the return manifold for easy shut-off and maintenance. M30 × 1.5 actuator connections provide universal compatibility with common thermal actuators, while high-quality EPDM seals ensure smooth operation and leak-free reliability.

Supplied complete with 1″ flat-sealing connections to the heat source, 3⁄4″ eurocone connections, and a pre-mounted wall bracket with low-noise pipe clamps, these brass manifolds offer a durable, installer-friendly solution with total peace of mind.
Manuals
Brass Manifold Datasheet

Specifications

Technical data
Application	Underfloor heating & cooling systems
Max. operating pressure	10 bar
Flow range	30 to 300l/h
Max. operating temperature	70°C
Main. operating temperature	-5°c
Usual working temperature	40°c
Maximum working pressure	1.5bar
Maximum test pressure	6bar
Media	Water
Manufacturing Standards	ISO9001, ISO14001, CE, TUV SUD, WRAS

Premium Brass Underfloor Heating Manifold

Price range: £89.99 through £359.99 inc.VAT

In Stock

SKU: ZL-112501MK

Size

Clear

Pipe Connectors

Next Day Delivery
100% Secure Shopping
Price Match
Lifetime Warranty
30 Day Returns

Description
Our premium brass underfloor heating manifolds are designed for 2 to 12 heating circuits, delivering precise control, reliable balancing, and long-term performance in water underfloor heating systems. Manufactured in accordance with BS EN 1264-4, they ensure safe, efficient heat distribution across residential and light commercial installations.

Each circuit features integrated flow meters for accurate balancing between 1–5 L/min, with manual isolation valves on the return manifold for easy shut-off and maintenance. M30 × 1.5 actuator connections provide universal compatibility with common thermal actuators, while high-quality EPDM seals ensure smooth operation and leak-free reliability.

Supplied complete with 1″ flat-sealing connections to the heat source, 3⁄4″ eurocone connections, and a pre-mounted wall bracket with low-noise pipe clamps, these brass manifolds offer a durable, installer-friendly solution with total peace of mind.
Manuals
Brass Manifold Datasheet

Specifications

Technical data
Application	Underfloor heating & cooling systems
Max. operating pressure	10 bar
Flow range	30 to 300l/h
Max. operating temperature	70°C
Main. operating temperature	-5°c
Usual working temperature	40°c
Maximum working pressure	1.5bar
Maximum test pressure	6bar
Media	Water
Manufacturing Standards	ISO9001, ISO14001, CE, TUV SUD, WRAS
