Varme Electric Underfloor Heating Carbon Film Kit 160w
***Carbon film heating is made to order that takes 10-14 days. Before we can send your order to manufacture we require you to email a floor plan showing room dimensions and thermostat location. Without this we CANNOT proceed with your order***
Our 160w carbon heating film is designed for installation beneath carpet & vinyl.

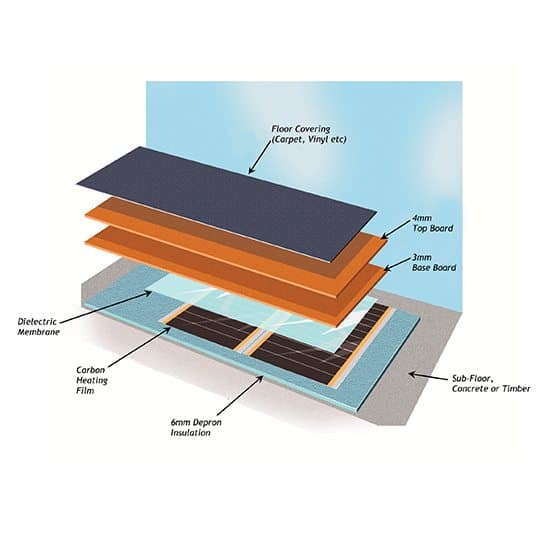

The film is laid over our exceptional 6mm Depron floor insulation (which replaces the standard flooring underlay) and underneath our HeatPak to give a minimal effect on your floor height – less than 14mm. This makes it ideal for use in both new buildings and renovations or refurbishments where floor height can be vitally important.
Each 160w carbon film kit contains:
– 160w carbon heating film roll
– 6mm Depron foam underlay
– Digital programmable thermostat
– 3 metre floor probe
– PE protective film barrier
– HeatPak containing a 3mm base board and a 4mm top board (see comparison chart for details)
Carbon Film Heating and HeatPak over board system is design to work with the carbon heating film. Once placed over the carbon heating you can fit a vinyl or carpet floor covering as long as the total Tog value of the floor covering is less than 2
Simple to install
The installation is so simple it can be done by anyone with even the most basic DIY skills, leaving your electrician to connect it up to the mains for you. Please read our installation guide for step-by-step instructions.
The control of the heating system is via our simple to operate, digital thermostat controller which has a 7-day/24 hr timer built in. The thermostat is unobtrusive and takes up the same space as a standard light switch.
The heating film is manufactured in the UK in a BEAB approved factory and has been used worldwide for many years. It is extremely reliable and comes with a lifetime manufacturers warranty!
For a quote please send a drawing of the room/s, with measurements of every wall and where any obstacles are.
Read our FAQ section to learn more about electric underfloor heating
Handy PDF guide for help with your installation…
We only supply ‘twin core’ heating cables. Twin core cables have two heating elements inside which gives two important advantages over ‘single core’ cables.
Firstly you only have one end to connect to the power supply, which is a big advantage during the installation process.
Secondly the EMF (electromagnetic field) which is created in all electrical appliances and wiring is dramatically reduced, to a level where it is almost immeasurable. Whilst this may not be a major concern for you today, there is a lot of research currently being undertaken around the globe into the effects of EMF and it is impossible to predict what findings may occur in the years ahead.
Comparison Chart for 160w Carbon Film & HeatPak Kits
|Product Code||Output (watts)||Coverage (sqm)||Insulation Coverage (sqm)||PE Barrier||Digital Thermostat||HeatPak(s)|
|Standard FH-01 Digital Thermostat
|Heatmiser neoStat-E Kit
Delivery costs to UK mainland…
Europe, Eire & Channel Islands: variable, please contact us for an exact price.
For more details read our Delivery Information page »
